Precision Vacuum Services Ltd

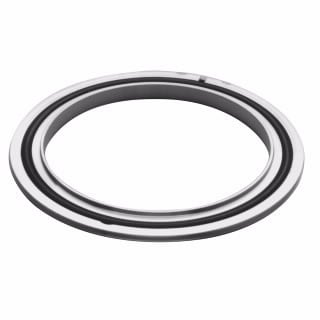

ISO Centering Rings

ISO centering rings are available from sizes ISO63 to ISO250. Centering Rings are available in stainless or aluminum and with Buna-N or FKM o-rings.

FKM has a maximum rated temperature of 200°C and Buna-N has a maximum rated temperature of 100°C.

Part Number Variant

IC250AB Centering ring Assembly, ISO250, aluminum, Buna-N O-ring
IC250AV Centering ring Assembly, ISO250, aluminum, FKM O-ring
IC100AB Centering ring, NW100, aluminum, Buna-N O-ring
IC100AV Centering ring, NW100, aluminum, FKM O-ring
IC100SV Centering ring, NW100, stainless steel, FKM
IC160AB Centering ring, NW160, aluminum, Buna-N O-ring
IC160AV Centering ring, NW160, aluminum, FKM O-ring
IC160SV Centering ring, NW160, stainless steel, FKM
IC200AB Centering ring, NW200, aluminum, Buna-N O-ring
IC200AV Centering ring, NW200, aluminum, FKM O-ring
IC200SV Centering ring, NW200, stainless steel, FKM
IC250SV Centering ring, NW250, stainless steel, FKM O-ring
IC063AB Centering ring, NW63, aluminum, Buna-N O-ring O-ring
IC063AV Centering ring, NW63, aluminum, FKM O-ring
IC063SV Centering ring, NW63, stainless steel, FKM
IC080AV Centering ring, NW80, aluminum, FKM O-ring
IC080SV Centering ring, NW80, stainless steel, FKM O-ring
IO100V Seal, O-ring, FKM, NW100
IO160V Seal, O-ring, FKM, NW160
IO063V Seal, O-ring, FKM, NW63
IO100S Seal, O-ring, silicone, NW100


New, factory warranted pumps available.

Price: POA, please contact us for latest prices
