PVS are pleased to provide OEM quality service, calibration, and repair to your Pfeiffer, Adixen, Alcatel ASM 142.

As part of the service, we provide a full service report and calibration certificate for your audited records.

Contact a member of our team to book in your service and calibration.

The Pfeiffer Adixen ASM142 is a fully automatic, multi-purpose, compact table top helium leak detector. The unit consists of the robust Holweck molecular drag high vacuum pump with a large 7CFM two-stage rotary vane roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing for applications requiring high performance operation and reliability.

These detectors are the end-result of an innovative engineering approach utilizing the latest electronics technologies and vacuum concepts, which make them a truly universal unit.

• Oil free leak detection with diaphragm backing pump
• 1.3 l/s helium pumping speed
• 110/130 V operating voltage
• US power cable
• Basic user interface and voice synthesizer in English
• Remote control and sniffer probe with various cable or tube lengths available as accessories
• High performances, such as, a roughing capacity of 7 CFM(60 l/mn) with a usable helium sensitivity

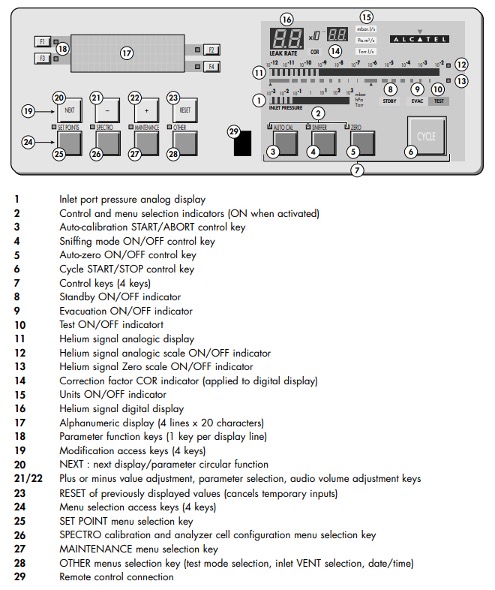

• Comprehensive control panel with two distinct areas
• Very rugged design, based on field-proven components

ASM142 User Manual
