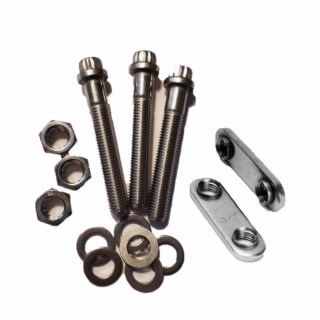

Nut & Bolt Sets for ConFlat Flanges

Bolt sets are available for both clear and tapped hole ConFlat flanges, with hex or 12 point head bolts. 12 point bolts are selected to prevent ?rounding? and to more efficiently transfer torque to the bolt head. Silver plated bolts should be used when frequent bakeouts occur, as they reduce the risk of galling.

To make installation of a ConFlat gasket easier, use the gasket clips to help hold the gasket steady and the plate nuts as a ?backing wrench? when assembling the flanges if using only one wrench.

Part Number Variant

FB0450T12 Nut and bolt set, 12 point bolt, 3.38 inch ConFlat, tapped hole flanges, 25/pk
FB0338C12 Nut and bolt set, 12 point bolt, for 3.375 inch, ConFlat to KF adapters, clear hole flanges, 25/pk
FB0450CD12 Nut and bolt set, 12 point bolt, for double sided 4.5 inch ConFlat flange, 10/pk
FB0450T12S Nut and bolt set, 12 point bolt, silver plated, 3.38 inch ConFlat, tapped hole flanges, 25/pk
FB0800T12S Nut and bolt set, 12 point bolt, silver plated, 6.75 to 10 inch ConFlat, nonrotatable, tapped hole flanges, 25/pk
FB0338C12S Nut and bolt set, 12 point bolt, silver-plated, 3.38 inch ConFlat, clear hole flanges, 25/pk
FB0450C12 Nut and bolt set, 12 point head, 4.5 inch ConFlat to KF adapters, clear hole flanges, 25/pk
FB0450C12S Nut and bolt set, 12 point head, silver plated, 4.5 inch ConFlat, clear hole flanges, 25/pk
FB03380275CR12 Nut and bolt set, 3.38 to 2.75 inch, reducing ConFlat flange
FB1325CD06 Nut and bolt set, 6 hexagonal head, double sided 13.25 inch ConFlat flange, 30/pk
FB06000275CR12 Nut and bolt set, 6 to 2.75 inch reducing ConFlat flange
FB06000338CR12 Nut and bolt set, 6 to 3.38 inch reducing ConFlat flange
FB06000450CR12 Nut and bolt set, 6 to 4.50 inch reducing ConFlat flange
FB08000450CR12 Nut and bolt set, 8 to 4.50 inch reducing ConFlat flange
FB08000275CR12 Nut and bolt set, 8.0 to 2.75 inch reducing ConFlat flange
FB0338C06 Nut and bolt set, ConFlat to KF adapters, hexagonal head, 3.38 inch, 25/pk
FB02750133CR12 Nut and bolt set, for 2.75-1.33 inch reducing flanges
FB04500133CR12 Nut and bolt set, for 4.5 inch to 1.33 inch ConFlat reducing flange
FB04500275CR12 Nut and bolt set, for 4.5 inch to 2.75 inch ConFlat reducing flange
FB0275C12S Nut and bolt set, for ConFlat flange, silver plated 12-point head, 2.12 or 2.75 inch ConFlat clear hole flanges, 25/pk
FB0275C12 Nut and bolt set, for ConFlat to KF adapters, 12-point bolt, 2.12 or 2.75 inch ConFlat clear hole flanges 25/pk
FB0275T12 Nut and bolt set, for ConFlat to KF adapters, 12-point head, 2.12 or 2.75 inch ConFlat tapped hole flanges, 25/pk
FB0275C06 Nut and bolt set, for ConFlat to KF adapters, hexagonal head, 2.12 or 2.75 inch ConFlat clear hole flanges 25/pk
FB0275T06 Nut and bolt set, for ConFlat to KF adapters, hexagonal head, 2.12 or 2.75 inch ConFlat tapped hole, 25/pk
FB0275T12S Nut and bolt set, for ConFlat to KF adapters, silver-plated 12-point head, 2.12 or 2.75 inch tapped hole ConFlat, 25/pk
FB0275CD06 Nut and bolt set, for double-sided flanges, hexagonal head, 2.75 inch ConFlat clear hole flanges, 6/pk
FB0275CD12 Nut and bolt set, for double-sided flanges,12-point Head, 2.75 inch ConFlat clear hole flanges, 6/pk
FB1000C06 Nut and bolt set, hexagonal head, 10 inch ConFlat, clear hole flanges, nonrotatable, 25/pk
FB1325C06 Nut and bolt set, hexagonal head, 13.25 inch ConFlat, clear hole flanges, nonrotatable, 30/pk
FB0450T06 Nut and bolt set, hexagonal head, 3.38 inch ConFlat, tapped hole flanges, 25/pk
FB0450C06 Nut and bolt set, hexagonal head, 4.5 inch ConFlat to KF adapters, clear hole flanges, 25/pk
FB0600C06 Nut and bolt set, hexagonal head, 4.62 inch ConFlat to KF adapters, clear hole flanges, rotatable, 25/pk
FB0800T06 Nut and bolt set, hexagonal head, 6.75 to 10 inch ConFlat, nonrotatable, tapped hole flanges, 25/pk
FB1000CD06 Nut and bolt set, hexagonal head, double sided 10 inch ConFlat flange, 24/pk
FB0600CD06 Nut and bolt set, hexagonal head, double sided 6 inch ConFlat, clear hole flanges, 16/pk
FB0800CD06 Nut and bolt set, hexagonal head, double sided 8 inch ConFlat, clear hole flanges, 20/pk
FB0450CD06 Nut and bolt set, hexagonal head, for double sided 4.5 inch ConFlat flange, 10/pk
FB10000800CR12 Nut and bolt set,10 to 8 inch reducing ConFlat flange
FB1000C12 Nut and bolt set,12 point bolt, 10 inch ConFlat, clear hole flanges, nonrotatable, 25/pk
FB0600C12 Nut and bolt set,12 point bolt, 4.62 inch ConFlat to KF adapters, clear hole flanges, rotatable, 25/pk
FB1000C12S Nut and bolt set,12 point head, silver plated, 10 inch ConFlat, clear hole flanges, nonrotatable, 25/pk
FB0600C12S Nut and bolt set,12 point head, silver plated, 4.62 to 8 inch ConFlat, clear hole flanges, 25/pk
FB0133CS Nuts and bolt set, for ConFlat to KF adapters, silver plated socket head, 1.33 inch ConFlat clear hole flanges, 25/pk
FB0133TS Nuts and bolt set, for ConFlat to KF adapters, silver plated socket head, 1.33 inch ConFlat tapped hole flanges, 25/pk
FB0133T Nuts and bolt set, for ConFlat to KF adapters, socket head, 1.33 inch ConFlat tapped hole flanges, 25/pk
FB0133C Nuts and bolt set, for ConFlat to KF adapters,socket head, 1.33 inch ConFlat clear hole flanges, 25/pk
FB0133CD Nuts and bolt set, socket, for double sided 1.33 inch ConFlat flange
FP0275K12 Plate nut set, 12-point head, plate nuts 12/pk, bolts 24/pk, washers 24/pk, 2.75 inch ConFlat
FP0275K06 Plate nut set, hexagonal head, plate nuts 12/pk, bolts 24/pk, washers 24/pk, 2.75 inch ConFlat
FP0133K Plate nut set, socket head, bolts 24/pk, plate nuts 12/pk, 1.33 inch ConFlat
FP0275N Plate nuts, hexagonal head, 2.75 inch ConFlat, 24/pk
FP0133N Plate nuts, socket head, 1.33 inch ConFlat, 24/pk


New, factory warranted pumps available.

Price: POA, please contact us for latest prices
