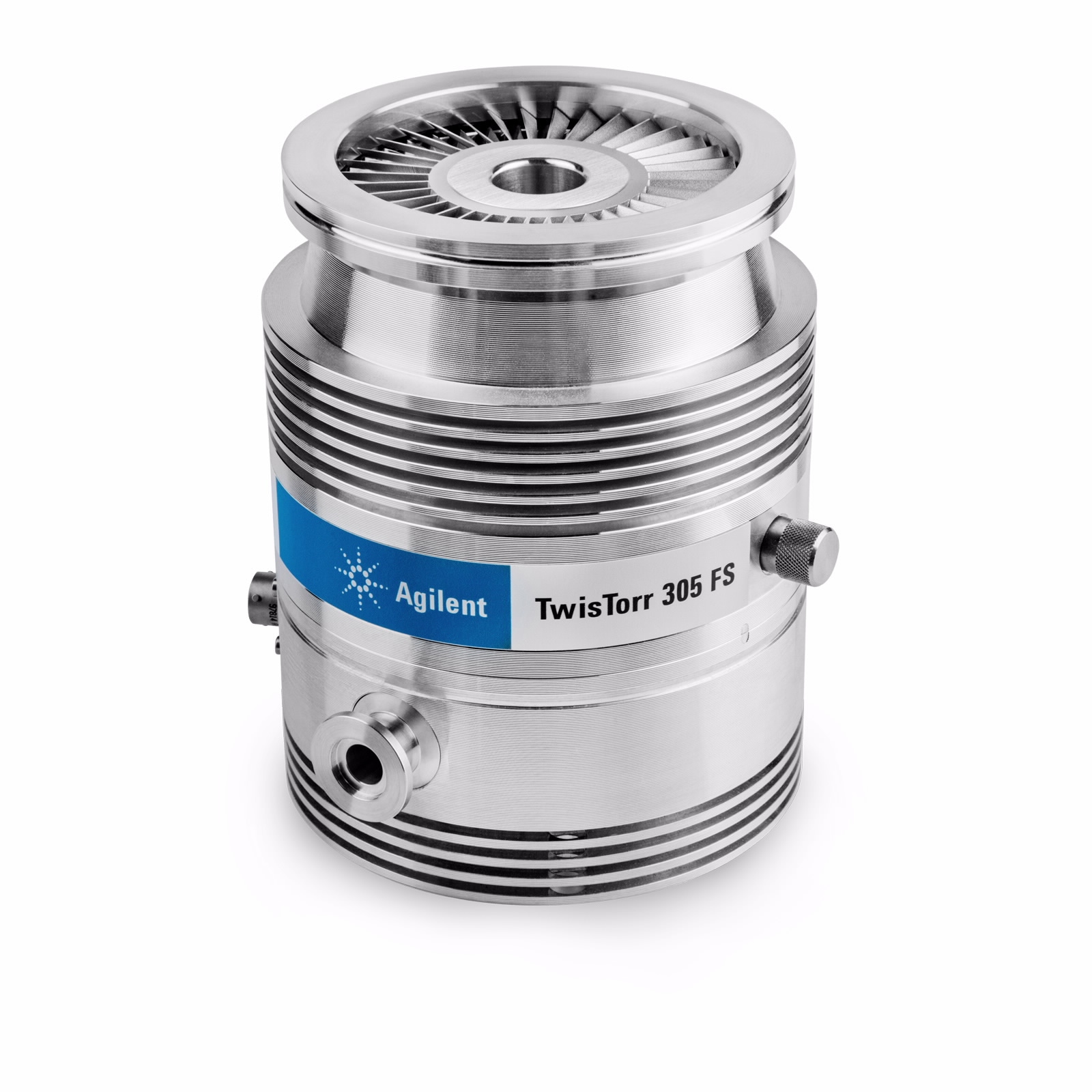

The TwisTorr 305 FS turbomolecular pump features an optimized design and advanced connectivity options such as Bluetooth. This 300 L/s turbo pump can be driven wirelessly using the Vacuum Link app.

The TwisTorr 305 FS turbo pump is ideal for academic research/particle accelerators (pump and controller can be up to 100 m apart) where compression ratio is an important factor contributing to very low base pressure. The pump’s low noise and vibration level make it a perfect solution for sensitive instruments, mass spectrometry, electron microscopes, and surface analysis applications.

High compression ratios for light gases enabling low base pressure
Hydrocarbon free for clean vacuum system
Remote controller allows operation from 100 m away
Low vibration and noise levels—41 dB(A)—for a comfortable working environment and operation in sensitive experiments
Compact size and installation in any position allow easy integration
Maintenance-free bearings for zero operating cost
Gauge reading capability for system pressure monitoring
Ready for wireless control via Vacuum Link app for pump operation on the go
Radiation and magnetic field-proof design with no embedded electronics allows operation in demanding magnetic field and radiation environments
Low electromagnetic emission guarantees no interferences with application process

Part Number Variant

X3513-64008 - TwisTorr 305 FS turbo pump, DN 100 ISO-K, air cooling
X3513-64009 - TwisTorr 305 FS turbo pump, DN 100 CF-F (6 in CFF), air cooling
X3513-64010 - TwisTorr 305 FS turbo pump, DN 160 ISO-K, air cooling
X3513-64011 - TwisTorr 305 FS turbo pump, DN 160 CF-F (8 in CFF), air cooling
X3513-64012 - TwisTorr 305 FS turbo pump, DN 100 ISO-K, water cooling
X3513-64013 - TwisTorr 305 FS turbo pump, DN 100 CF-F (6 in CFF), water cooling
X3513-64014 - TwisTorr 305 FS turbo pump, DN 160 ISO-K, water cooling
X3513-64015 - TwisTorr 305 FS turbo pump, DN 160 CF-F (8 in CFF), water cooling

New, factory warranted pumps available.

Price: POA, please contact us for latest prices

Manual

View Manual

Ambient Operating Temperature

+5 to +35 °C

Ambient Storage Temperature

-40 to +70 °C

Base Pressure

<1 x 10^-10 mbar <1 x 10^-10 Torr

Compression Ratio H2

1.5 x 10⁶

Compression Ratio He

>1 x 10⁸

Compression Ratio N2

>1 x 10¹¹

Cooling Method

Air cooling, Water cooling

Flange Type

DN 100, KF 160

Foreline Flange Size

KF 16 NW

Foreline Tolerance - N2

12 mbar

Maximum Gas Throughput - N2, Water Cooling

250 sccm

Noise Level

41 dB(A)

Nominal Rotation Speed

60600 rpm (1010 Hz driving frequency)

Operating Position

Any

Pumping Speed - Ar

250 L/s

Pumping Speed - H2

220 L/s

Pumping Speed - He

255 L/s

Pumping Speed - N2

250 L/s

Recommended Forepump Capacity

7 m³/h

Standards and Certifications

EN 61010-1
EN 61326-1
EN 1012-2
EN 12100
EN 50581
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/
EU Directive 2011/65/EU

Start Up Time

< 3 min

Weight

5.84 kg
