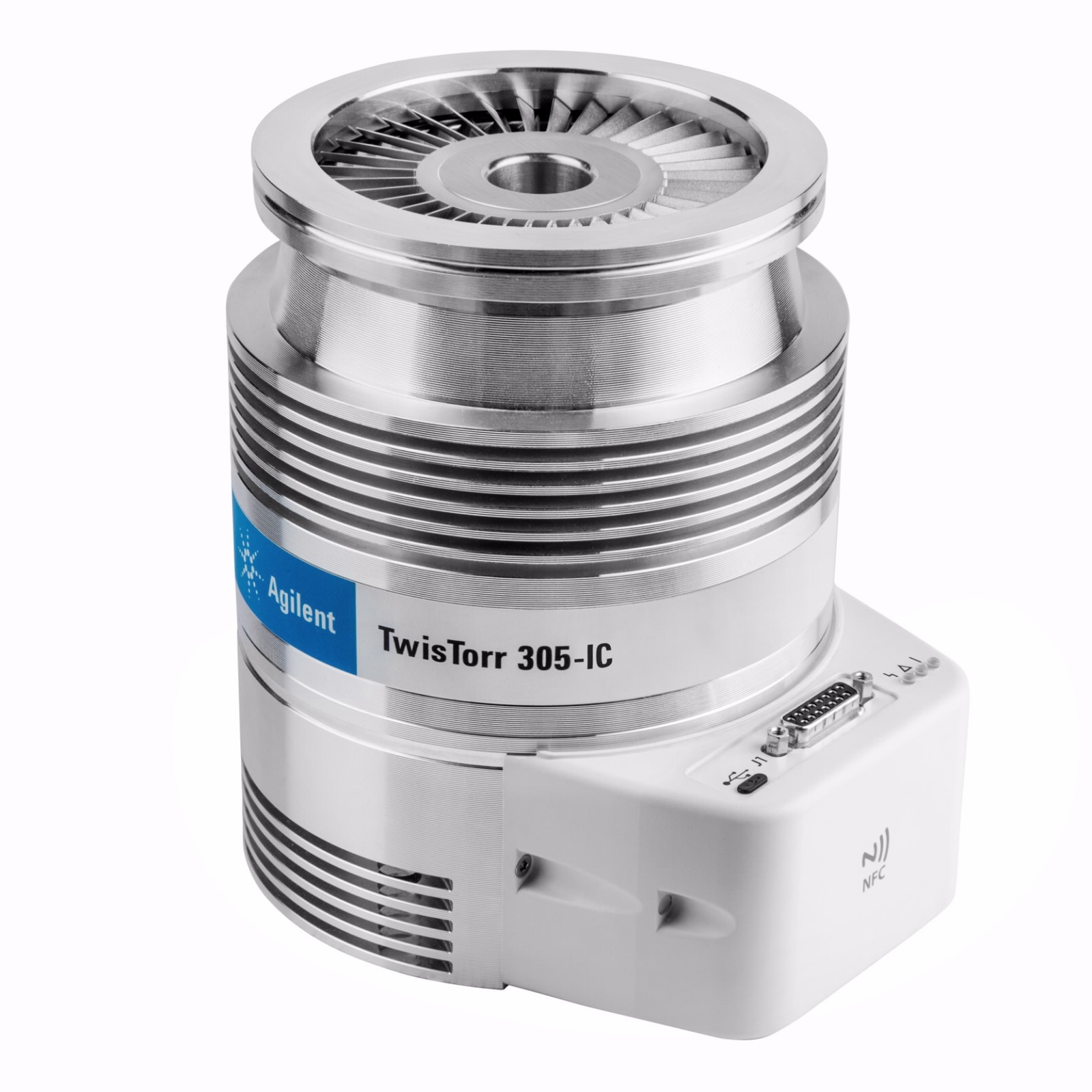

The TwisTorr 305-IC turbomolecular pump with integrated controller is capable of communicating with the Vacuum Link app on your smartphone via near-field communication (NFC).

Due to its small footprint, low vibration, and low noise level, this 300 L/s turbo pump is ideal for use in any analytical instrument, such as mass spectrometry and microscopy systems. In academic settings, where compression ratio is an important factor, the TwisTorr 305-IC is capable of reaching low base pressures in a variety of demanding experiments.

Integrated controller, compact size, and installation in any position allow easy integration
High compression ratios for light gases, enabling low base pressure
Wireless NFC communication for pump monitoring via app
Low vibration and noise levels-41 dB(A)-for a comfortable working environment and operation in sensitive experiments
Hydrocarbon free for clean vacuum system
Maintenance-free bearings for zero operating cost
Low electromagnetic emission guarantees no interferences with application process

Part Number Variant

X3513-64030 - TwisTorr 305-IC turbo pump, DN 160 ISO-K, water cooling, RS232
X3513-64020 - TwisTorr 305-IC turbo pump, DN 100 ISO-K, water cooling, RS485P
X3513-64031 - TwisTorr 305-IC turbo pump, DN 160 CF-F (8 in CFF), water cooling, RS232
X3513-64018 - TwisTorr 305-IC turbo pump, DN 160 ISO-K, air cooling, RS485P
X3513-64007 - TwisTorr 305-IC turbo pump, DN 160 CF-F (8 in CFF), water cooling, RS485A
X3513-64029 - TwisTorr 305-IC turbo pump, DN 100 CF-F (6 in CFF), water cooling, RS232
X3513-64019 - TwisTorr 305-IC turbo pump, DN 160 CF-F (8 in CFF), air cooling, RS485P
X3513-64025 - TwisTorr 305-IC turbo pump, DN 100 CF-F (6 in CFF), air cooling, RS232
X3513-64003 - TwisTorr 305-IC turbo pump, DN 160 CF-F (8 in CFF), air cooling, RS485A
X3513-64026 - TwisTorr 305-IC turbo pump, DN 160 ISO-K, air cooling, RS232
X3513-64004 - TwisTorr 305-IC turbo pump, DN 100 ISO-K, water cooling, RS485A
X3513-64005 - TwisTorr 305-IC turbo pump, DN 100 CF-F (6 in CFF), water cooling, RS485A
X3513-64016 - TwisTorr 305-IC turbo pump, DN 100 ISO-K, air cooling, RS485P
X3513-64027 - TwisTorr 305-IC turbo pump, DN 160 CF-F (8 in CFF), air cooling, RS232
X3513-64006 - TwisTorr 305-IC turbo pump, DN 160 ISO-K, water cooling, RS485A
X3513-64017 - TwisTorr 305-IC turbo pump, DN 100 CF-F (6 in CFF), air cooling, RS485P
X3513-64028 - TwisTorr 305-IC turbo pump, DN 100 ISO-K, water cooling, RS232
X3513-64021 - TwisTorr 305-IC turbo pump, DN 100 CF-F (6 in CFF), water cooling, RS485P
X3513-64000 - TwisTorr 305-IC turbo pump, DN 100 ISO-K, air cooling, RS485A
X3513-64022 - TwisTorr 305-IC turbo pump, DN 160 ISO-K, water cooling, RS485P
X3513-64023 - TwisTorr 305-IC turbo pump, DN 160 CF-F (8 in CFF), water cooling, RS485P
X3513-64001 - TwisTorr 305-IC turbo pump, DN 100 CF-F (6 in CFF), air cooling, RS485A
X3513-64002 - TwisTorr 305-IC turbo pump, DN 160 ISO-K, air cooling, RS485A
X3513-64024 - TwisTorr 305-IC turbo pump, DN 100 ISO-K, air cooling, RS232

New, factory warranted pumps available.

Price: POA, please contact us for latest prices

Manual

View Manual

Ambient Operating Temperature

+5 to +35 °C

Ambient Storage Temperature

-40 to +70 °C

Base Pressure

<1 x 10^-10 mbar <1 x 10^-10 Torr

Compression Ratio H2

1.5 x 10⁶

Compression Ratio He

>1 x 10⁸

Compression Ratio N2

>1 x 10¹¹

Cooling Method

Air cooling, Water cooling

Flange Type

DN 100, KF 160

Foreline Flange Size

KF 16 NW

Foreline Tolerance - N2

12 mbar

Maximum Gas Throughput - N2, Water Cooling

250 sccm

Noise Level

41 dB(A)

Nominal Rotation Speed

60600 rpm (1010 Hz driving frequency)

Operating Position

Any

Pumping Speed - Ar

250 L/s

Pumping Speed - H2

220 L/s

Pumping Speed - He

255 L/s

Pumping Speed - N2

250 L/s

Recommended Forepump Capacity

7 m³/h

Standards and Certifications

EN 61010-1
EN 61326-1
EN 1012-2
EN 12100
EN 50581
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/
EU Directive 2011/65/EU

Start Up Time

< 3 min

Weight

5.74 kg
