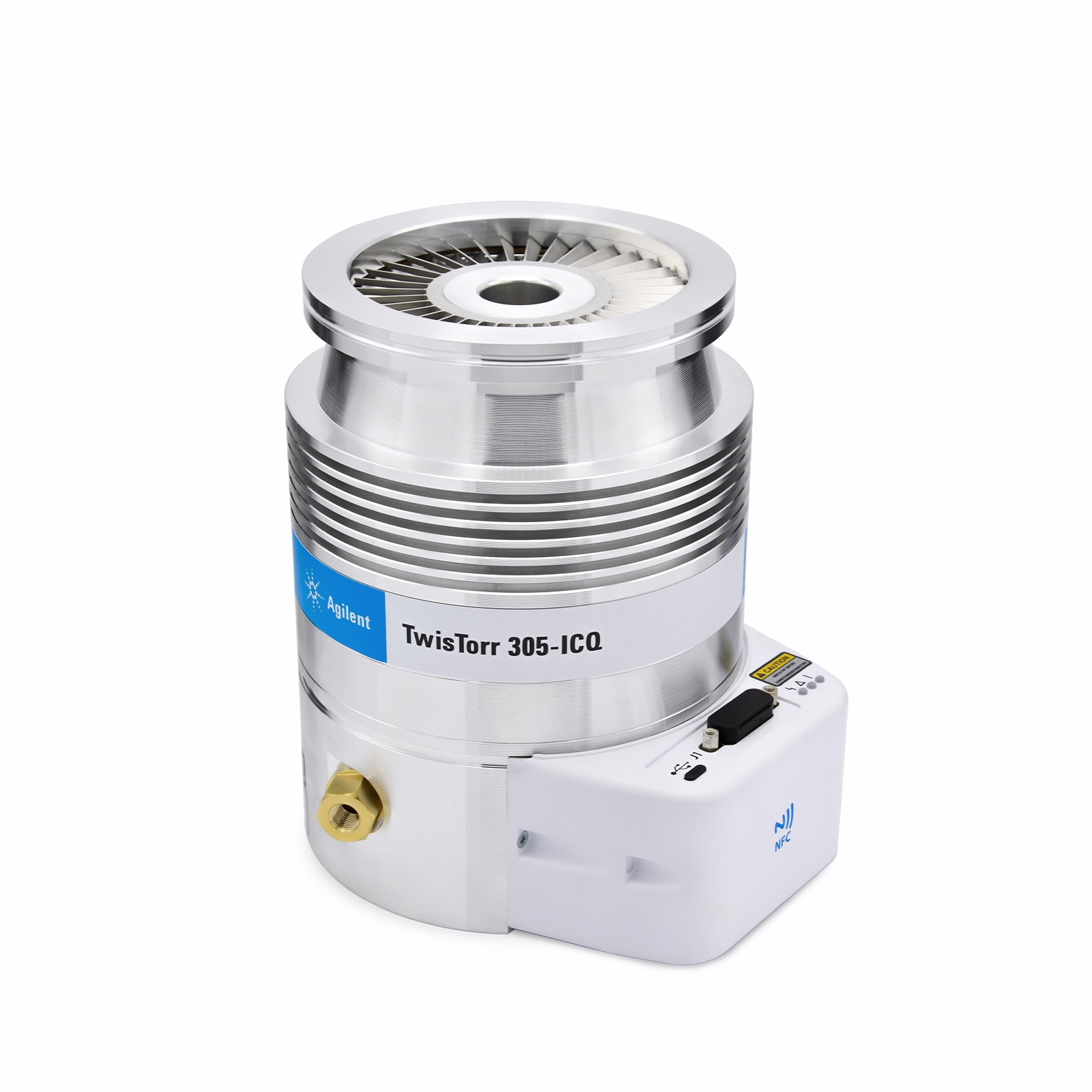

The TwisTorr 305-ICQ high flow turbomolecular pump with integrated controller is ideal for research processes and industries using high gas flow.

This 300 L/s pump features a small footprint, low vibration, and low noise level and is capable of communicating with the Vacuum Link app on your smartphone using near-field communication (NFC).

Integrated controller, compact size, and installation in any position allow easy integration
High throughput enabling use in applications with medium-to-high gas flow
Wireless NFC communication for pump monitoring via app
Low vibration and noise levels—41 dB(A)—for a comfortable working environment and operation in sensitive experiments
Hydrocarbon-free for clean vacuum system
Maintenance-free bearings for zero operating cost
Low electromagnetic emission guarantees no interferences with application process

Part Number Variant

X3513-64060 - TwisTorr 305-ICQ turbo pump with integrated controller, high throughput, DN 100 ISO-K, water cooling, RS485
X3513-64061 - TwisTorr 305-ICQ turbo pump with integrated controller, high throughput, DN 100 ISO-K, air cooling, RS485
X3513-64062 - TwisTorr 305-ICQ turbo pump with integrated controller, high throughput, DN 100 CF-F (6 in CFF), water cooling, RS485
X3513-64063 - TwisTorr 305-ICQ turbo pump with integrated controller, high throughput, DN 100 CF-F (6 in CFF), air cooling, RS485
X3513-64064 - TwisTorr 305-ICQ turbo pump with integrated controller, high throughput, DN 160 ISO-K, water cooling, RS485
X3513-64065 - TwisTorr 305-ICQ turbo pump with integrated controller, high throughput, DN 160 CF-F (8 in CFF), water cooling, RS485

New, factory warranted pumps available.

Price: POA, please contact us for latest prices

Manual

View Manual

Ambient Operating Temperature

+5 to +35 °C

Ambient Storage Temperature

-40 to +70 °C

Base Pressure

<1 x 10^-10 mbar <1 x 10^-10 Torr

Compression Ratio H2

2 x 10⁴

Compression Ratio He

1 x 10⁵

Compression Ratio N2

2 x 10⁸

Cooling Method

Air cooling, Water cooling

Flange Type

DN 100, KF 160

Foreline Flange Size

KF 16 NW

Foreline Tolerance - N2

16 mbar

Maximum Gas Throughput -He, Water Cooling

500 sccm

Maximum Gas Throughput - N2, Water Cooling

380 sccm

Noise Level

41 dB(A)

Nominal Rotation Speed

60600 rpm (1010 Hz driving frequency)

Operating Position

Any

Pumping Speed - H2

220 L/s

Pumping Speed - He

255 L/s

Pumping Speed - N2

250 L/s

Recommended Forepump Capacity

7 m³/h

Standards and Certifications

EN 61010-1
EN 61326-1
EN 1012-2
EN 12100
EN 50581
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/
EU Directive 2011/65/EU

Start Up Time

< 3 min

Weight

5.74 kg
