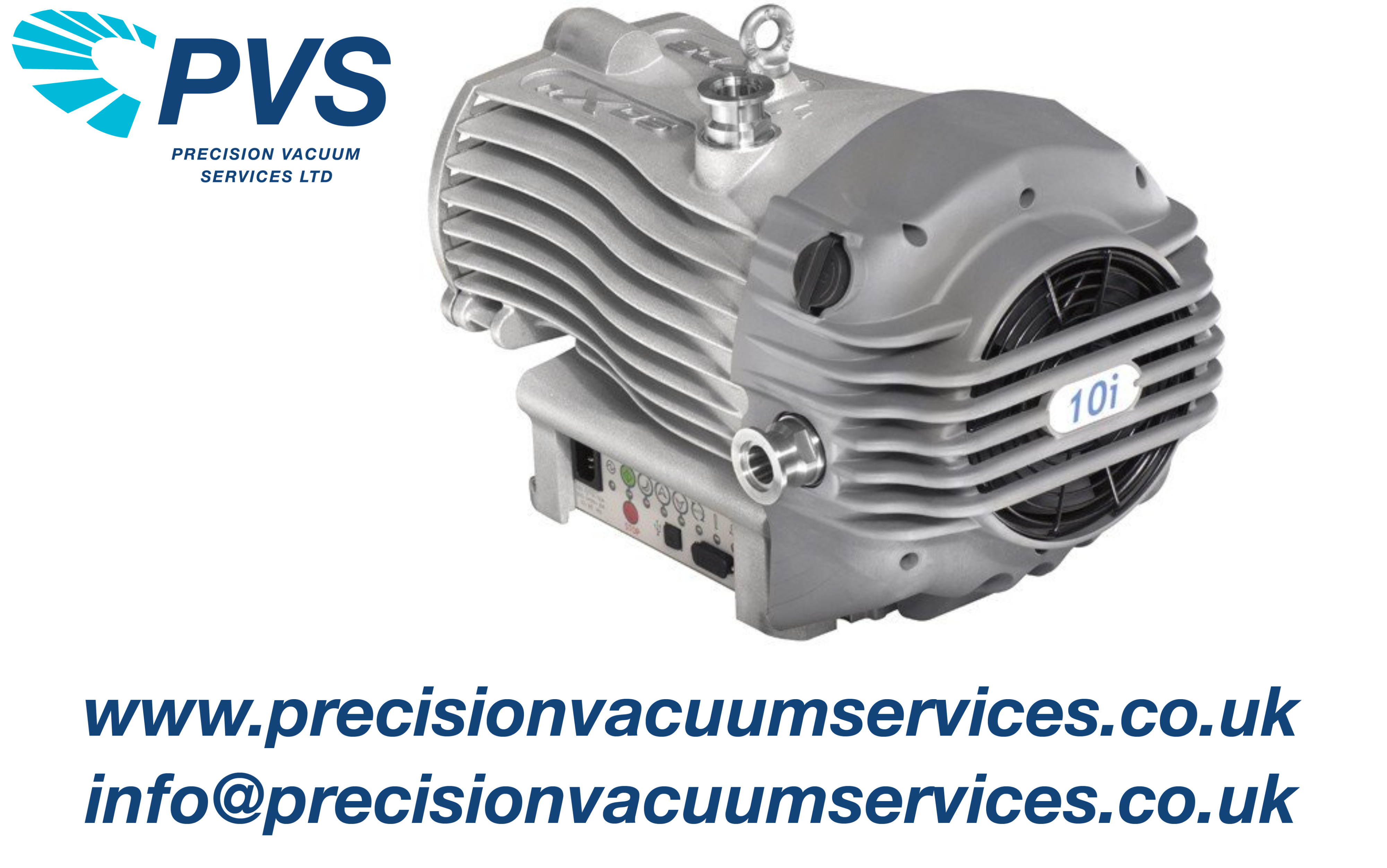

New Edwards nXDS10i

Part Number Variant

A73601983 nXDS10i 100-127/200-240 V, 50/60 Hz 1ph
A73602983 nXDS10iC 100-127/200-240 V, 50/60 Hz
A73603983 nXDS10iR 100-127/200-240 V, 50/60 Hz

New, factory warranted pumps available.

Price: POA, please contact us for latest prices

Manual

View Manual

Nominal rotational speed

1800 rpm

Displacement

12.7 m³h^-1 / 7.5 ft³min^-1

Peak pumping speed

11.4 m³h^-1 / 6.7 ft³min^-1

Ultimate vacuum (total pressure)

0.007 mbar / 0.005 Torr

Minimum standby rotational speed

1200 rpm

Speed control resolution (percentage of full rotation speed)

Pumping speed at minimum rotational speed

7.5

Maximum continuous inlet pressure

200 mbar

Motor power 1-ph

260 W

Power connector 1-ph

IEC EN60320 C13

Recommended fuse

10A, 250Vac rms

Weight

25.8 kg / 57 lb

Inlet flange

NW25

Exhaust flange

NW25

Noise level

52 dB(A)

Vibration at inlet flange

< 4.5 mms^-1 (rms)

Leak tightness (static)

< 1x10^-6 mbar ls^-1

Operating temperature range

5 to 40 °C / 41 to 104 °F
