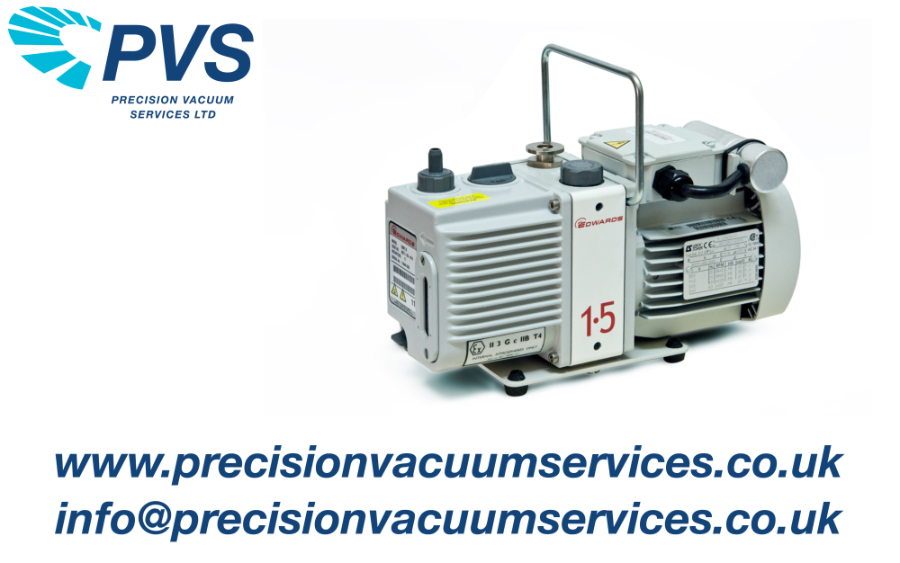

Refurbished Edwards E2M1.5

Part Number Variant

A37122919 E2M1.5 200-230V, 1-ph, 50/60Hz
A37132919 E2M1.5 200-230V, 1-ph, 50/60Hz, IEC 60320 connectors
A37104919 E2M1.5 interstage 200-230V, 1-ph, 50/60Hz, IEC 60320 connectors

All our refurbished products carry a PVS Ltd. 12mth warranty for peace of mind Competitively priced offering a significant cost saving over new equipment.
All our refurbished pumps are put through a stringent process,

Stripped, decontaminated and inspected
Rebuilt replacing perishable service components such as O-rings, gaskets, bearings, valves, vanes, tipseals, filters etc.
Fully tested to OEM specifications
12mth warranty

Price: POA, please contact us for latest prices

Manual

View Manual

Displacement (swept volume)

50 Hz

1.8 m³h^-1 / 1 ft³min^-1

60HZ

2.2 m³h^-1 / 1.3 ft³min^-1

Speed (Pneurop 6602)

50 Hz

1.6 m³h^-1 / 0.8 ft³min^-1

60Hz

2.0 m³h^-1 / 1.2 ft³min^-1

Ultimate vacuum (total pressure)

without gas ballast

3 x 10^-3 mbar / 2.3 x 10^-3 Torr

with gas ballast

2.5 x 10^-2 mbar / 1.9 x 10^-2 Torr

Inlet connection

NW10 flange

Outlet connection

Nozzle 11 mm external diameter removable from ⅜ inch BSP tapped hole

Maximum permitted pressure at outlet

0.5 bar gauge / 7 psig

Maximum inlet pressure for water vapour

15 mbar / 11 Torr

Maximum water vapour pumping rate

16 gh^-1

Motor power 50/60 Hz (IP54)

0.16 kW

Nominal rotation speed 50/60Hz

2800/3400 rpm

Power connector

IEC EN60320 C13

Operating temperature range

12 – 40°C

Weight

10 kg / 22 lbs

Noise

54 dB (A) @ 50 Hz

Noise with acoustic enclosure

47 dB(A) @ 50Hz

Oil capacity - max

0.28 litre

Min

0.2 litre

Recommended oil (supplied)

Ultragrade 15

Service Information
