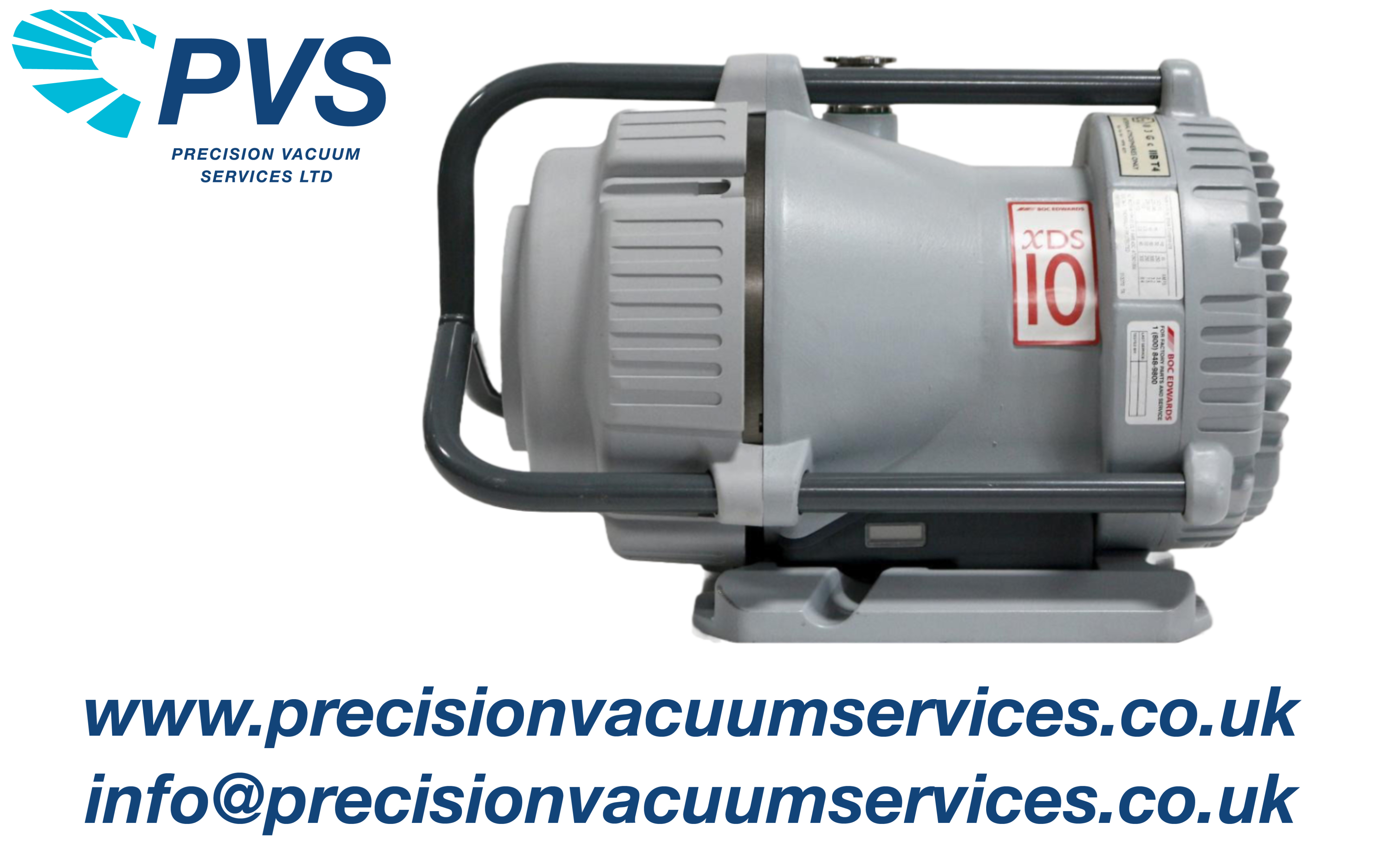

Refurbished Edwards XDS10

Part Number Variant

A72601903 XDS10 Factory set to 220-240 V, 50/60 Hz 1ph
A72601904 XDS10 Factory set to 100/200 V, 50/60 Hz 1ph
A72601905 XDS10 Factory set to 200-230/380-460 V, 50/60 Hz 3ph
A72601906 XDS10 Factory set to 110-120 V, 50/60 Hz, 1ph

All our refurbished products carry a PVS Ltd. 12mth warranty for peace of mind Competitively priced offering a significant cost saving over new equipment.
All our refurbished pumps are put through a stringent process,

Stripped, decontaminated and inspected
Rebuilt replacing perishable service components such as O-rings, gaskets, bearings, valves, vanes, tipseals, filters etc.
Fully tested to OEM specifications
12mth warranty

Price: POA, please contact us for latest prices

Manual

View Manual

Displacement

50Hz

11.3 m³h^-1

60Hz

13.4 m³h^-1

Speed (Pneurop 6602)

50Hz

9.3 m³h^-1

60Hz

11.1 m³h^-1

Ultimate pressure

7.0 x 10-2 mbar

Ultimate pressure GB I

1.5 x 10-1 mbar

Ultimate pressure GB II

3.5 x 1-1 mbar

Ultimate Pressure with Fomblin®

N/A

Max inlet pressure for water vapour

0.5 bar gauge

Max water vapour pumping rate – GB I

15 l/min

Max water vapour pumping rate – GB II

N/A

Max allowed outlet pressure

1.0 bar gauge

Max allowed inlet and gas ballast pressure

1.5 bar absolute

Motor power 50/60Hz

Power connector 1-ph

250/300W

Nominal rotation speed 50/60Hz

1440 – 1730 rpm

Weight (without oil)

24.5 kg approx

Oil capacity min/max

N/A

Recommended oil

N/A

Inlet flange

NW25

Exhaust flange

NW25

Noise level

55 dB(A) @ 50 Hz

Operating temperature range

10 – 40 °C

Service Information
